LácteosCarniceríaCharcuteríaFruterías

Data sheet

Installation Manual

2D CAD

3D CAD

Exploded view

Energy Efficiency Class *

* The information regarding the energy class (according to EU Regulations 2019/2018 and 2019/2024) refers to the best configuration available for these models. Any configuration different from the same can vary significantly in the information related to the energy class. Also, this configuration is based on information available at the time of publication of this page. For more information, consult the EPREL European Database of Energy Labeling Products or contact our Commercial Department.

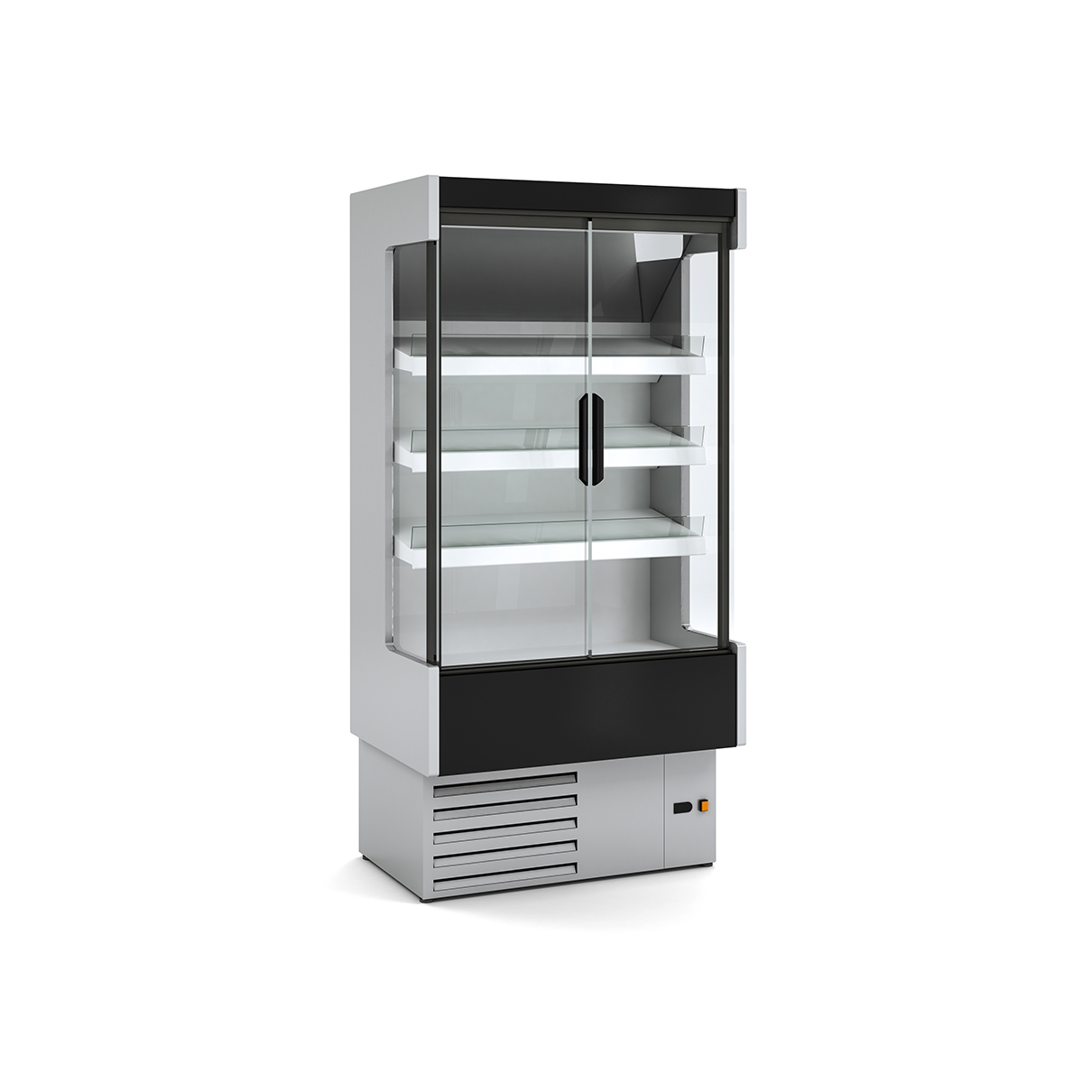

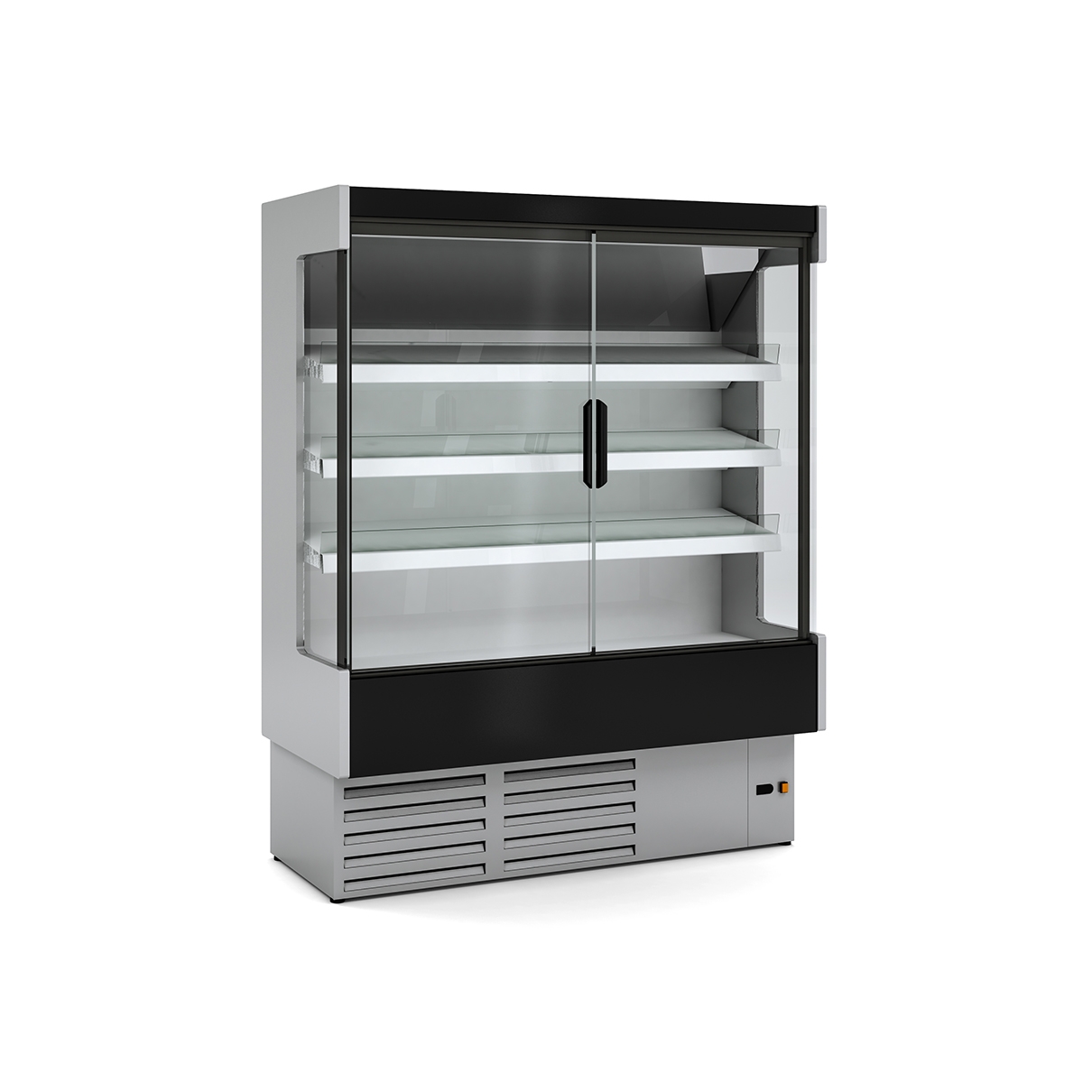

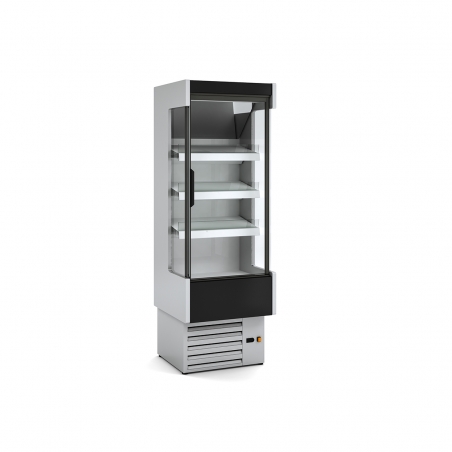

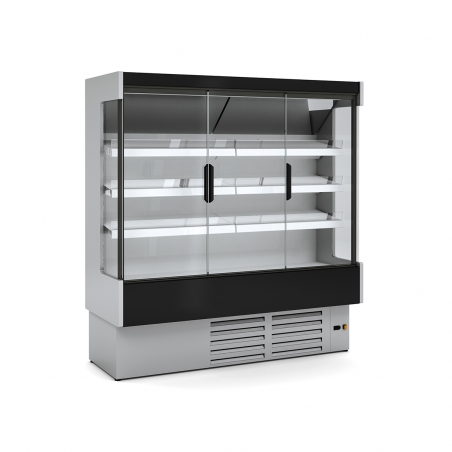

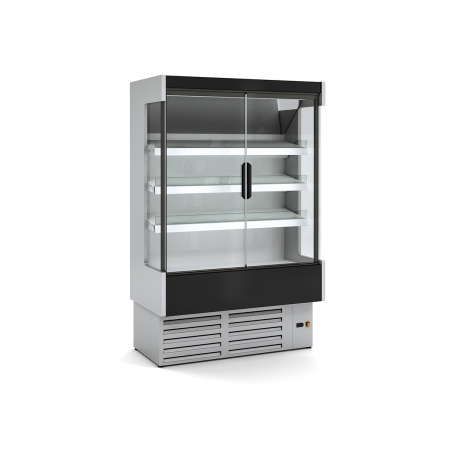

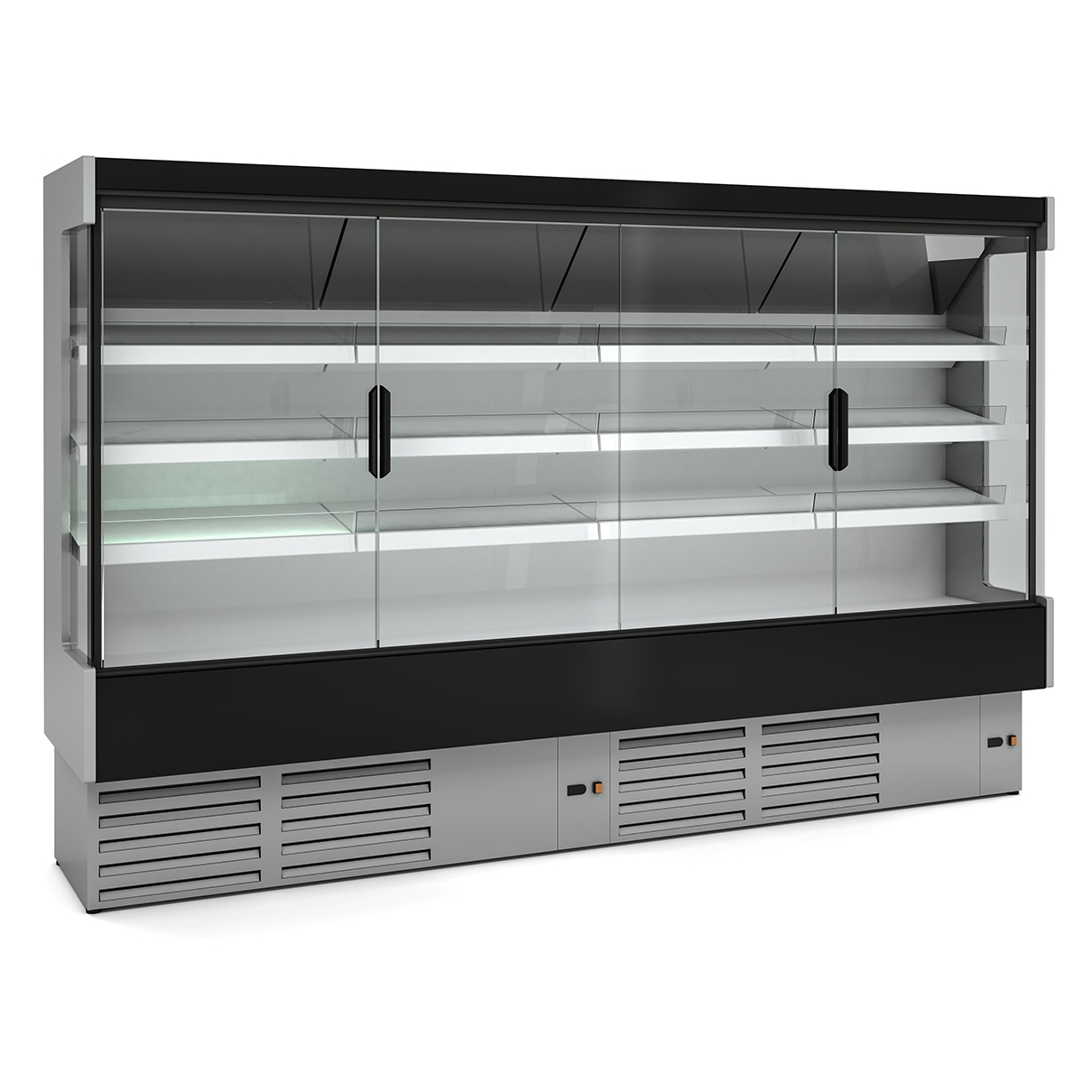

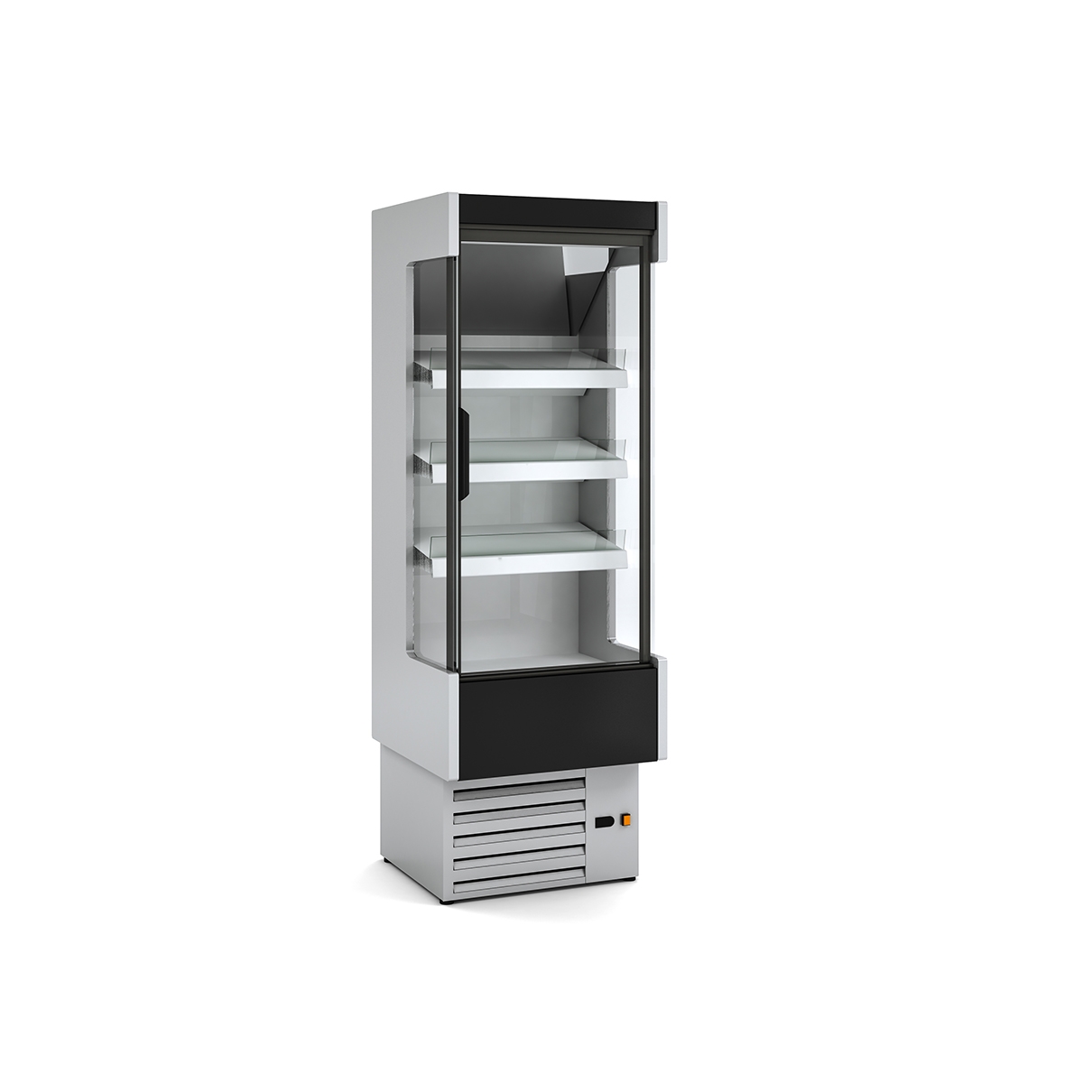

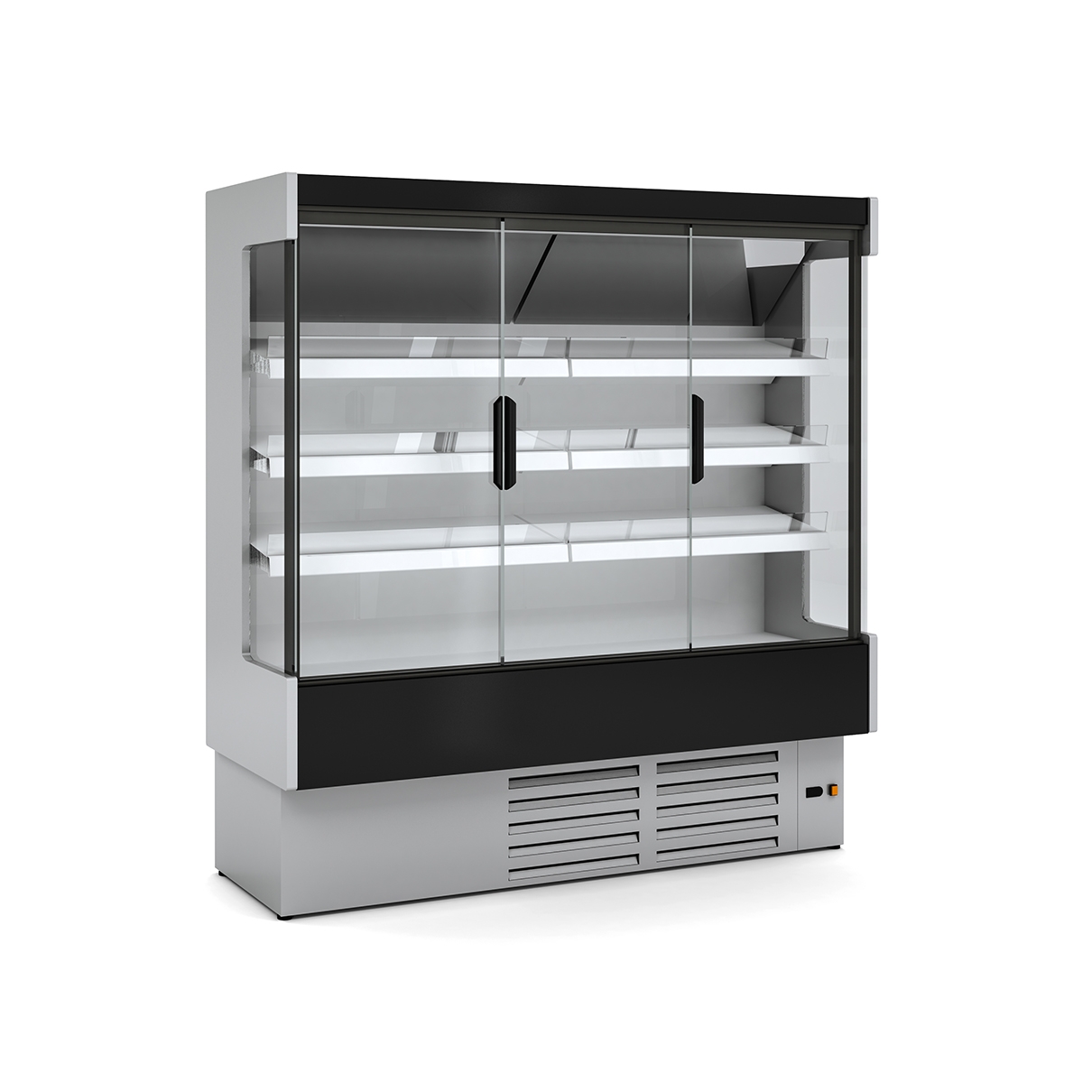

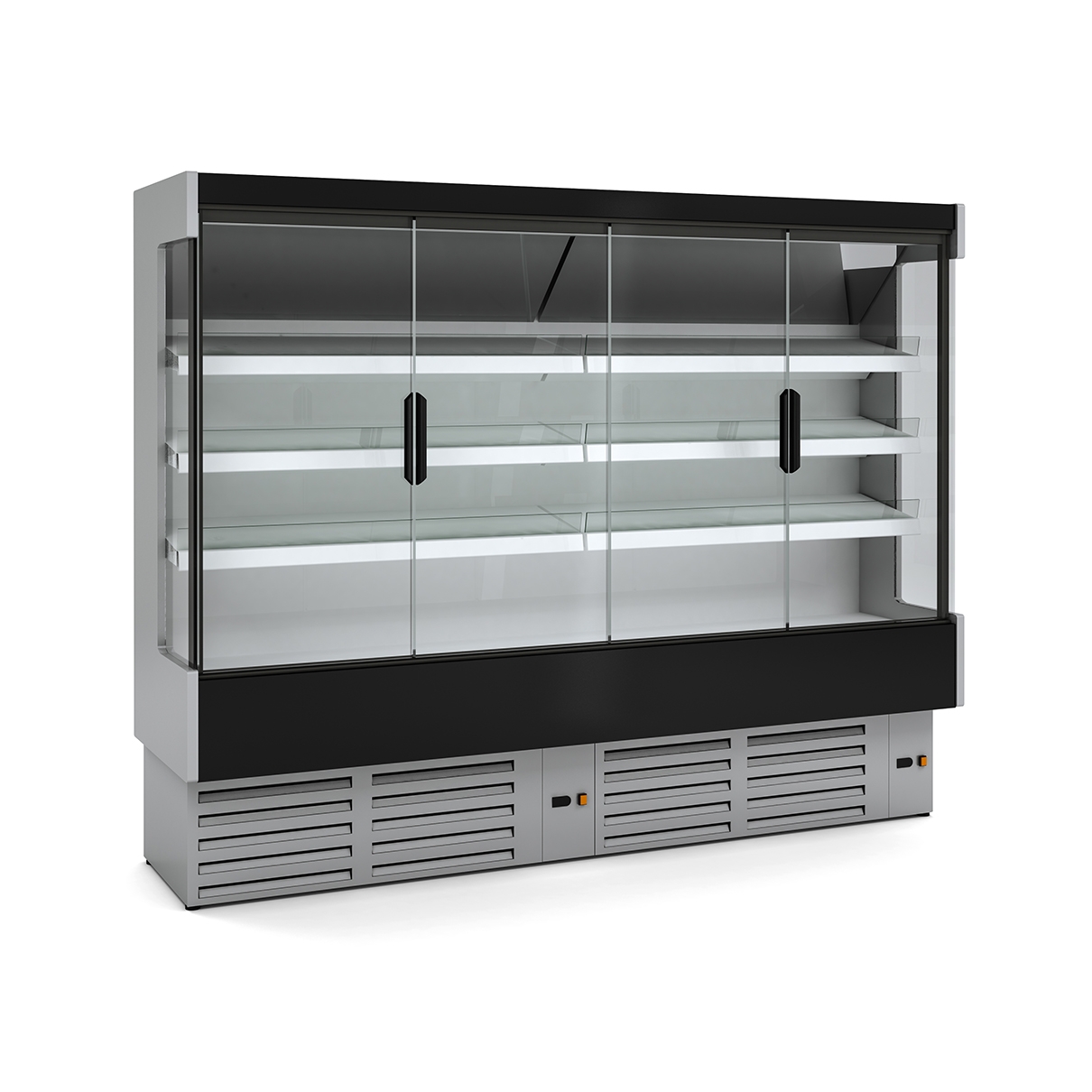

DG1 H1

Description

Model Length (mm) Length (with sides) (mm) Refrigerated Shelves Area (m2) Refrigerated Shelves Area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) Net Volume (l) Net Volume (l) Shelves (Units) Shelves (units) Doors (Units) Doors (units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Rated Consumption (W) Refrigerant Refrigerant
DG1 06 H1 685 1.08 0.71 273 3 1 555 1132 R-290
DG1 09 H1 998 1.62 1.03 408 3 two 1192 1494 R-290
DG1 12 H1 1310 2.16 1.42 544 3 two 1192 1508 R-290
DG1 15 H1 1623 2.70 1.82 681 6 two 1419 1635 R-290
DG1 18 H1 1935 3.24 2.14 812 6 3 1528 1945 R-290
DG1 25 H1 2560 4.33 2.85 1084 6 4 2384 2612 R-290
DG1 31 H1 3185 5.41 3.65 1363 12 4 2838 3377 R-290

Product Details
