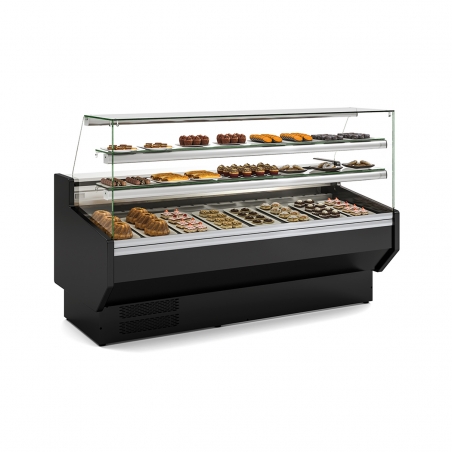

Refrigerated Display Case VEPD-9-RR
Refrigerated Display Case VEPD-9-RR

Refrigerated Display Case VEPD-9-RR

Pastelerías

Data sheet

Installation Manual

2D CAD

3D CAD

Exploded view

VEPD-9-RR

Description

Model Length (mm) Length (mm) Height (mm) Height (mm) Depth (mm) Depth (mm) Exhibition Area (m2) Exhibition area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) EV chamber (m3) EV camera Doors (Units) Doors (Units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Rated Consumption (W) Refrigerant Refrigerant
VEPD-9-10 1055 1300 940 0.97 0.75 0.33 1 858 829 R-290
VEPD-9-13 1305 1300 940 1.22 0.94 0.43 two 968 891 R-290
VEPD-9-15 1525 1300 940 1.44 1.12 0.49 two 781 1045 R-290
VEPD-9-20 2025 1300 940 1.94 1.50 0.67 3 949 1133 R-290
VEPD-9-25 2525 1300 940 2.44 1.89 0.84 4 1419 1333 R-290
