LácteosCarniceríaCharcuteríaFruterías

Data sheet

Installation Manual

2D CAD

3D CAD

Exploded view

Energy Efficiency Class *

* The information regarding the energy class (according to EU Regulations 2019/2018 and 2019/2024) refers to the best configuration available for these models. Any configuration different from the same can vary significantly in the information related to the energy class. Additionally, this configuration is based on information available at the time of publication of this page. For more information, consult the EPREL European Database of Energy Labeling Products or contact our Commercial Department.

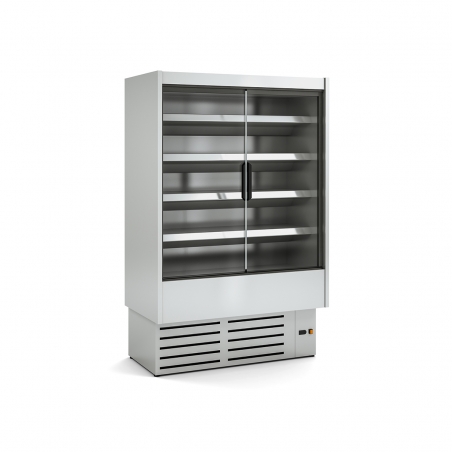

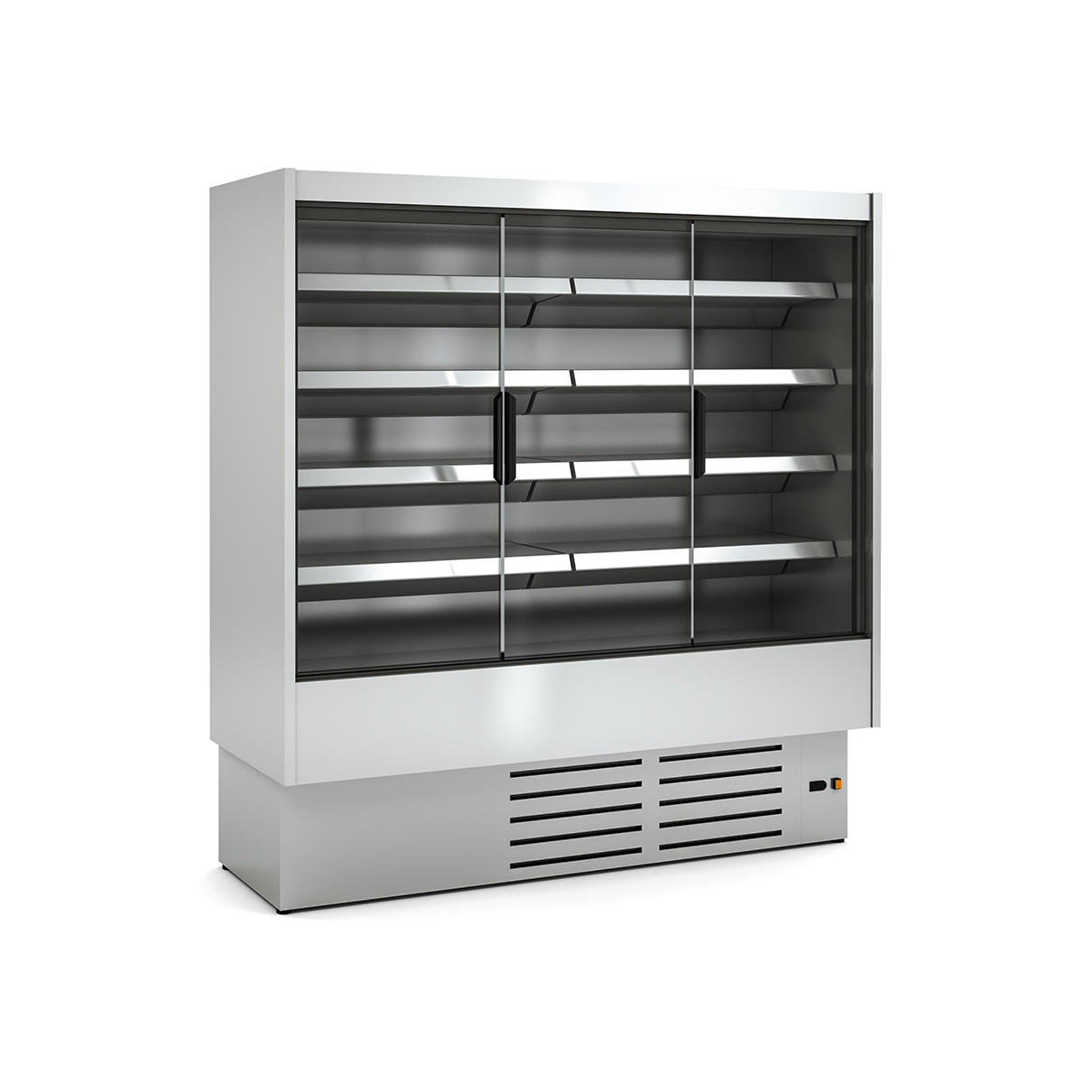

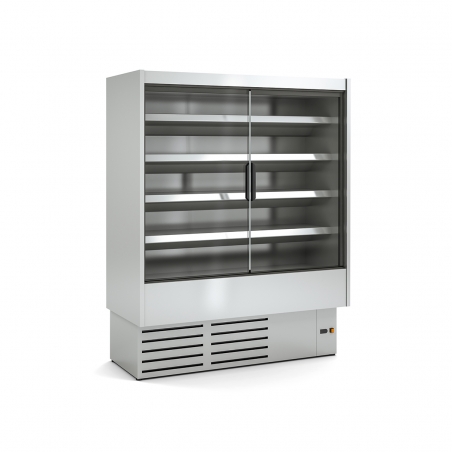

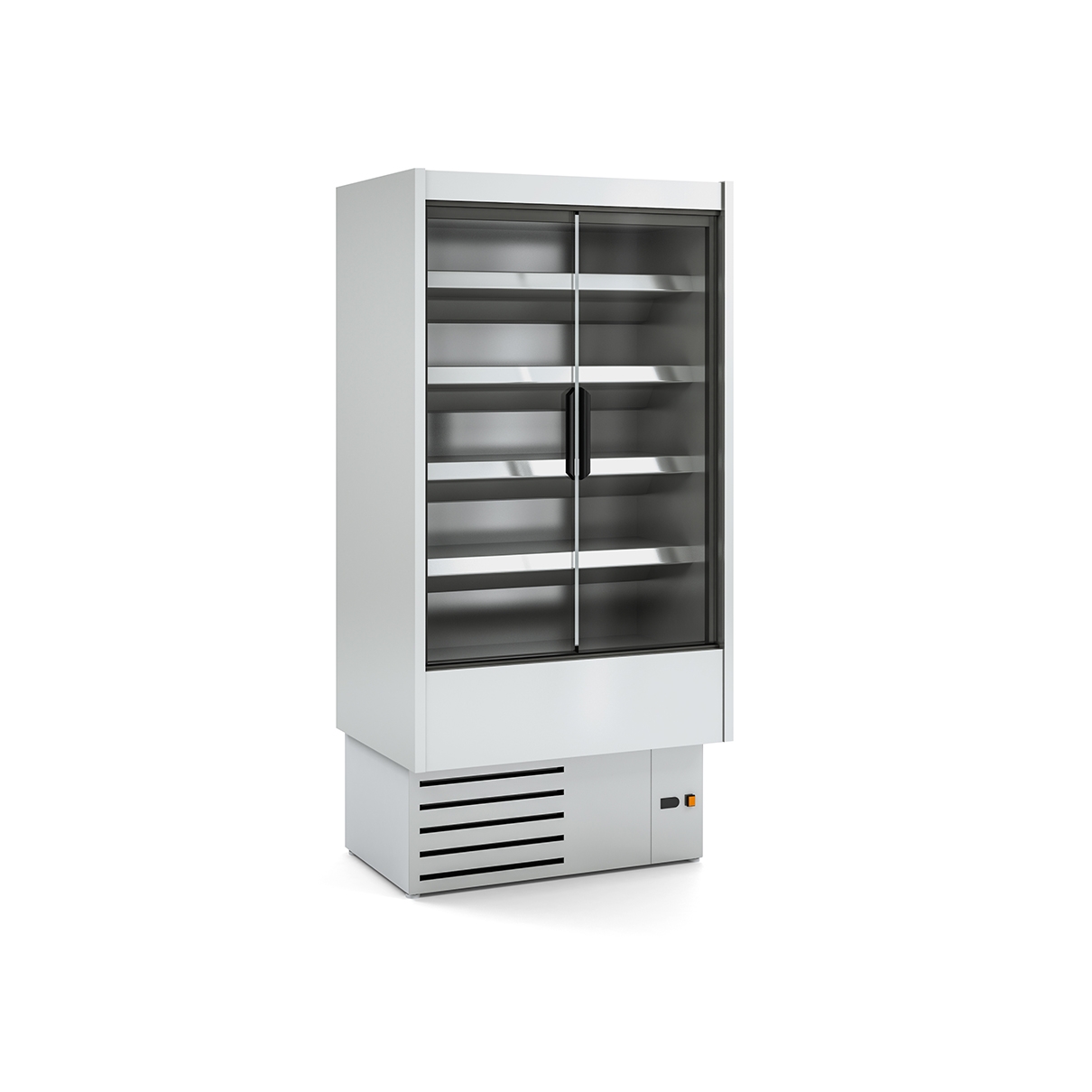

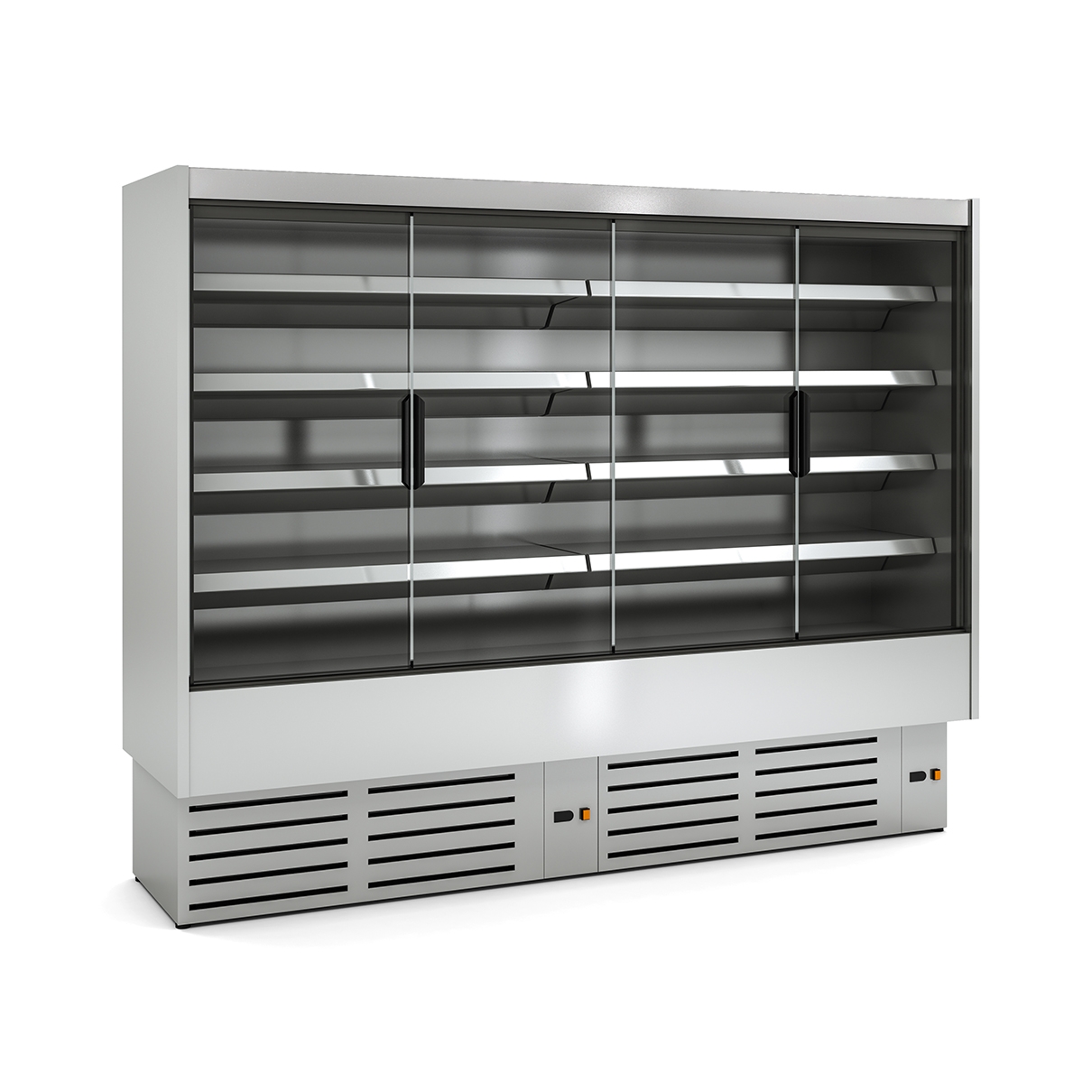

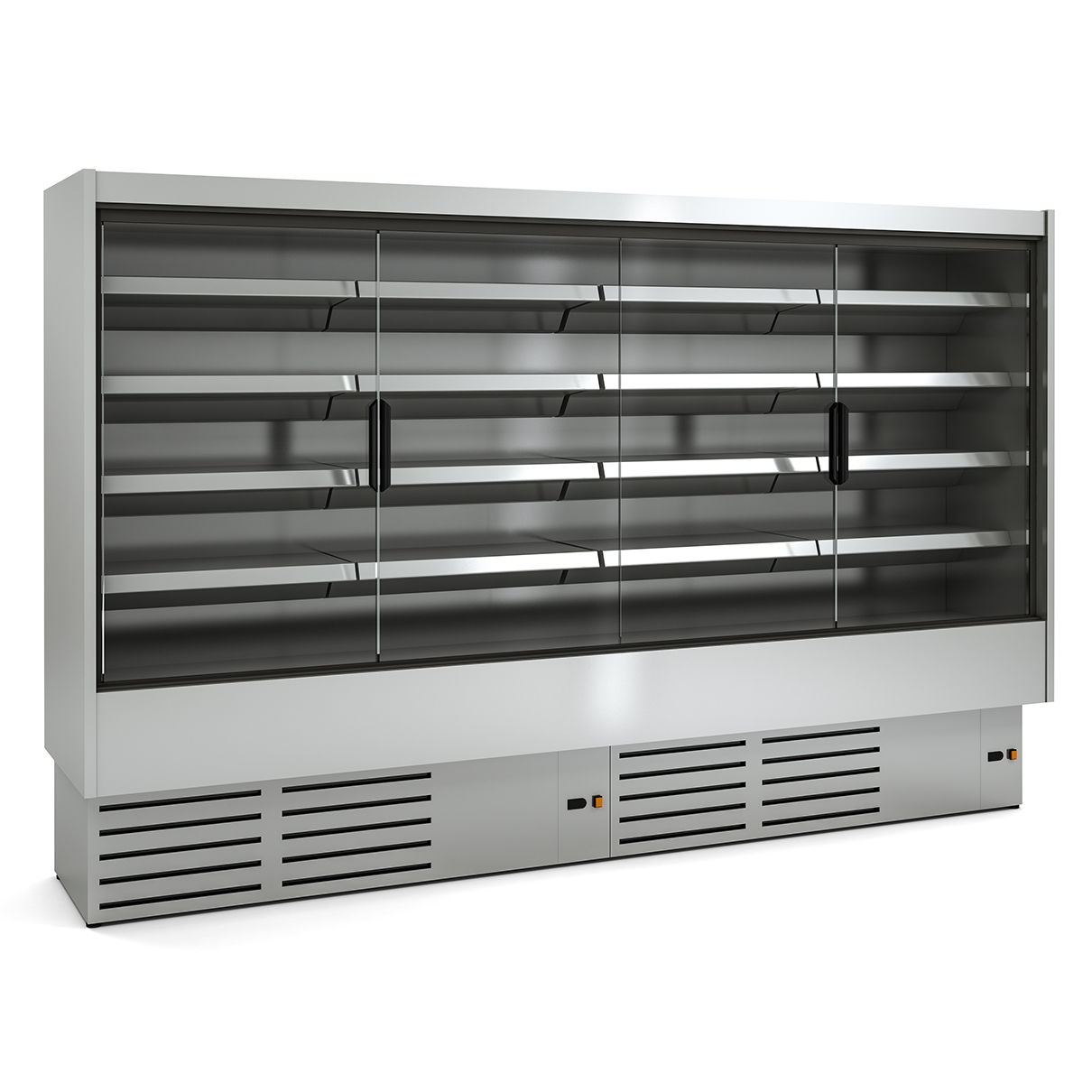

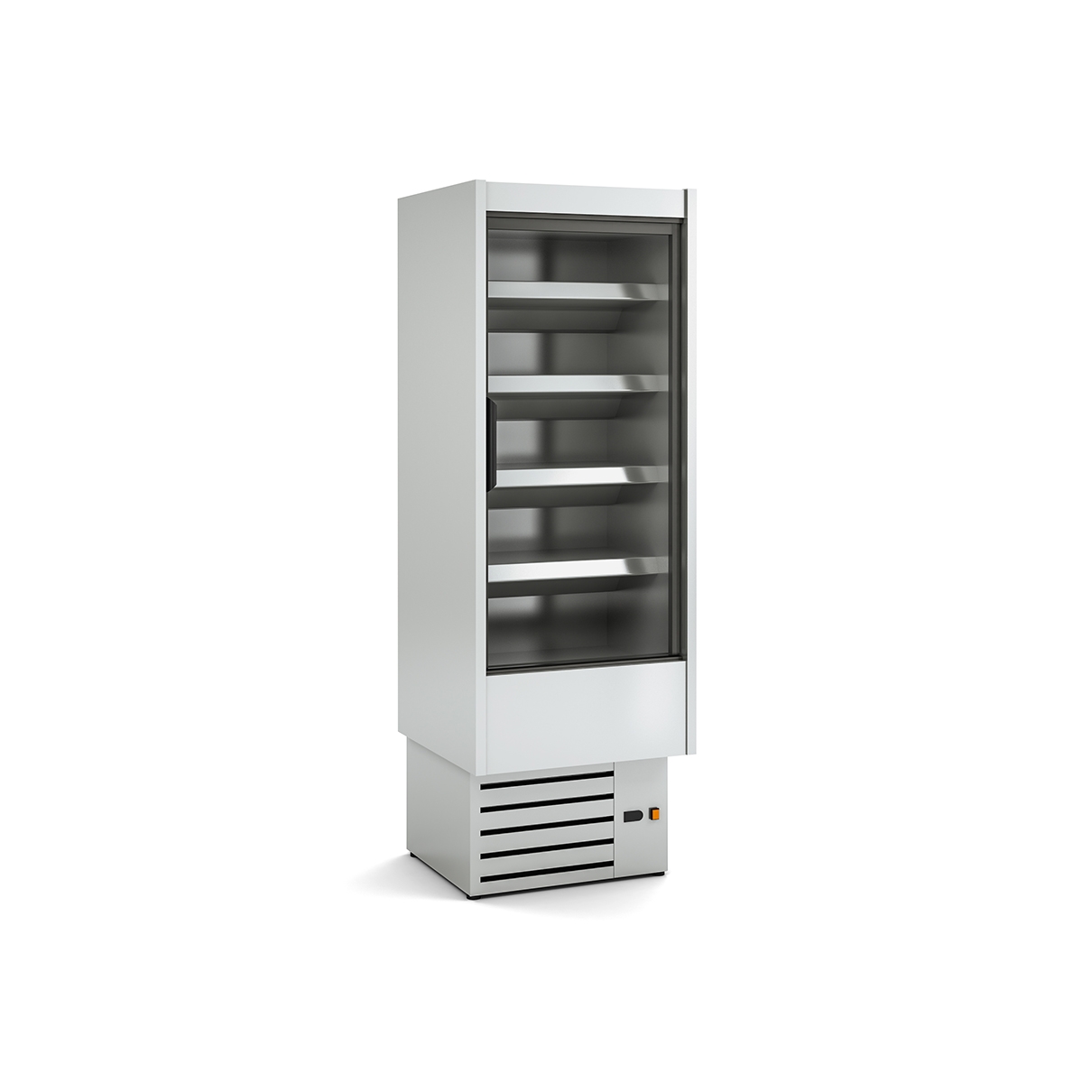

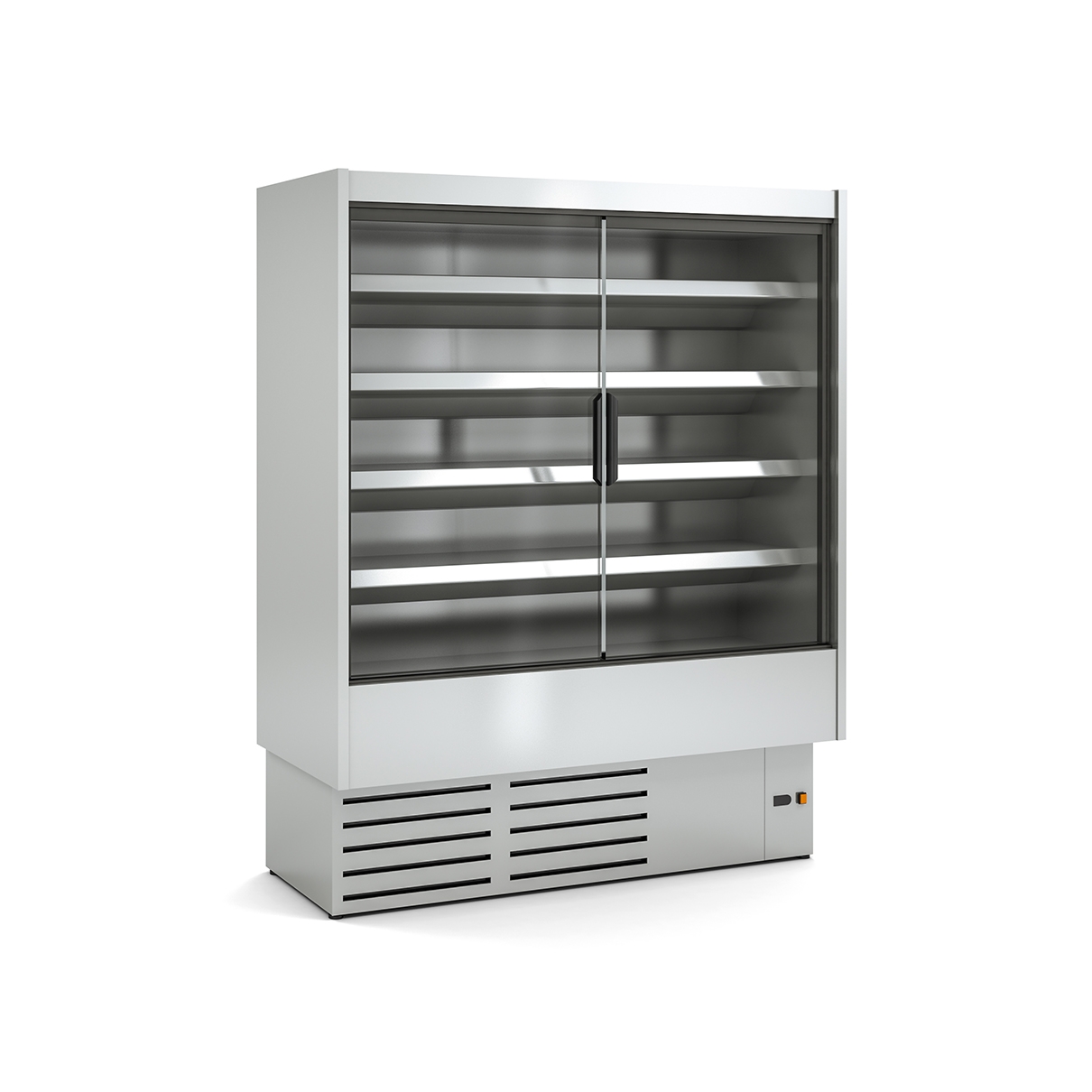

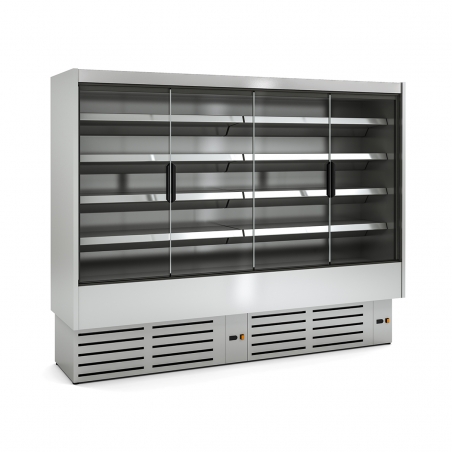

DG0 I M1-M2

Description

Model Length (mm) Length (with sides) (mm) Refrigerated Shelves Area (m2) Refrigerated Shelves Area (m 2 ) Total Exhibition Area (TDA) (m2) Total Exhibition Area (TDA)(m 2 ) Net Volume (l) Net Volume (l) Shelves (Units) Shelves (units) Doors (Units) Doors (units) Cooling Power (W) Cooling Power (W) Rated Consumption (W) Rated Consumption (W) Refrigerant Refrigerant
DG0 I 06 M1-M2 685 1.00 0.69 218 4 1 555 1132 R-290
DG0 I 09 M1-M2 998 1.50 0.99 326 4 two 1192 1494 R-290
DG0 I 12 M1-M2 1310 2.00 1.37 434 4 two 1192 1508 R-290
DG0 I 15 M1-M2 1623 2.50 1.76 543 8 two 1419 1635 R-290
DG0 I 18 M1-M2 1935 3.00 2.06 652 8 3 1528 1945 R-290
DG0 I 25 M1-M2 2560 4.00 2.75 869 8 4 2384 2612 R-290
DG0 I 31 M1-M2 3185 5.00 3.52 1086 16 4 2838 3377 R-290

Product Details
